                    • Features

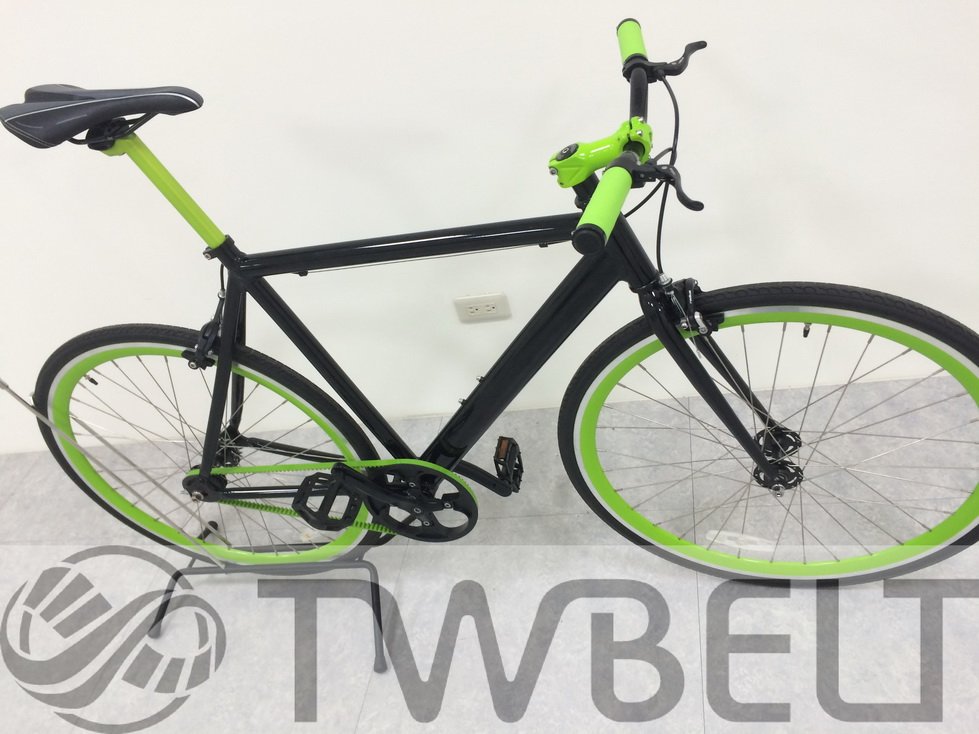

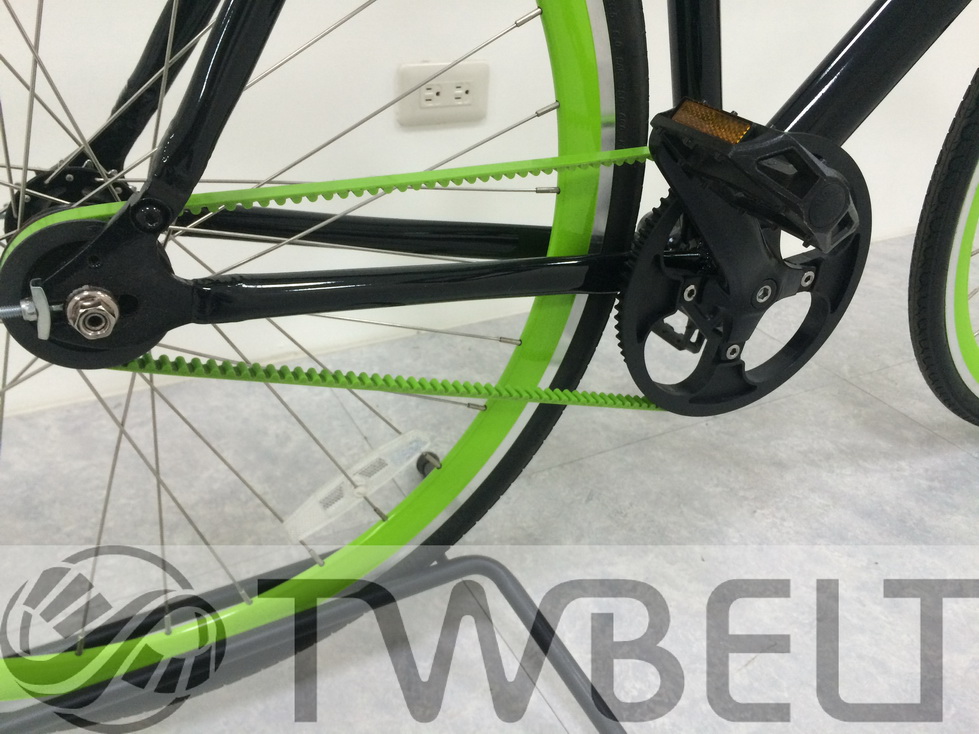

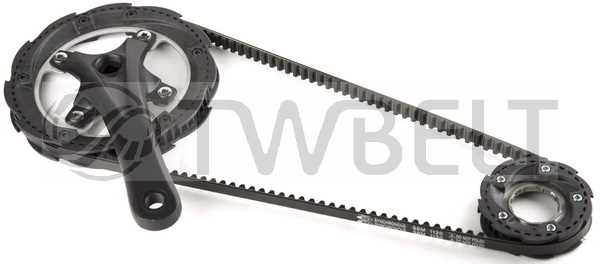

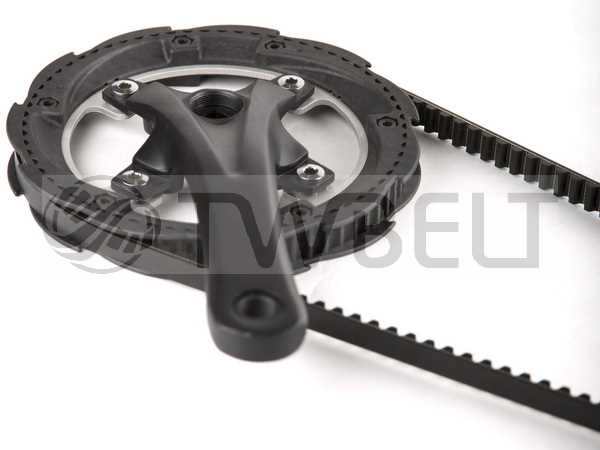

                    • Patent colorful belts combine with bike drive system highlight personal unique and special.
                    • Facebook
                    • Plurk
                    • Twitter

                  • Inquiry

          • Introduction
          • Belt Specification
          • Pulley Specifications
          • Ordering example

            •

              Feature：
              1 Clean & maintenance free
                No lube. Wherever in crowded places or trunks, do not worry about greasy clothes or hands.
              2 Unique

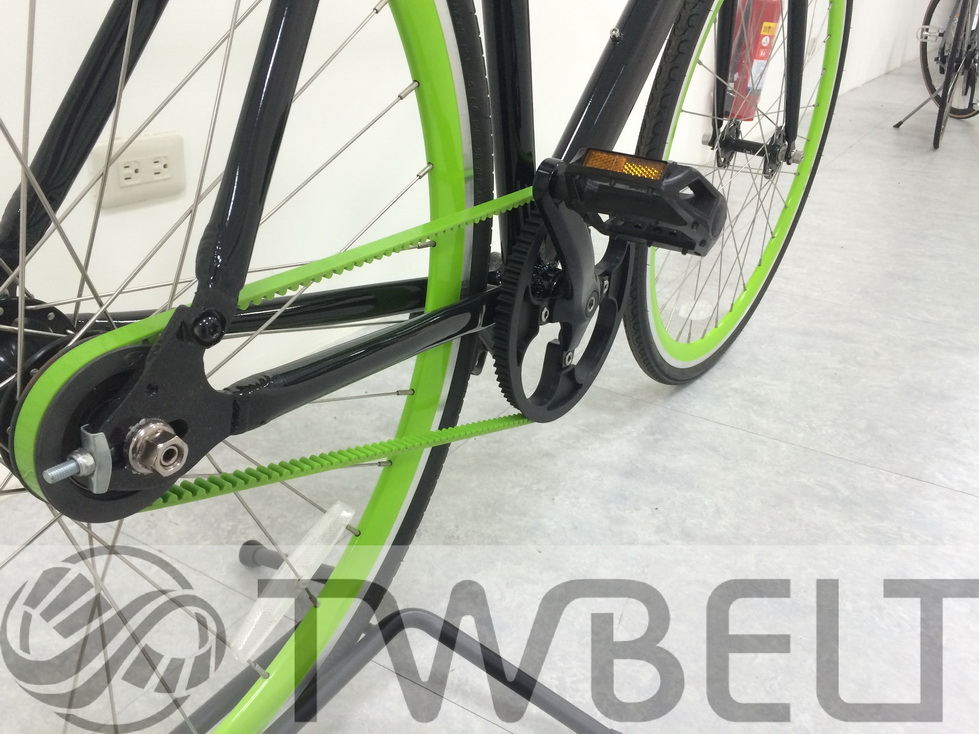

                Combined patent colorful belts with frames, showing your personal styles.
              3 High performance
                Particular belt contracture has higher life than bike chains.
              4 Silence
                While climbing slopes or cycling in cities, just leave your noisy chains behind.
              5 Climate resistance
                Excellent polyurethane belts are resistant to UV and climate. There is no problem with sunlight or rain on belts.
              6 Enjoyment
                Compared with chain drives, fully derive the pleasure from belt drive and keep your legs safe.
              7 Compatibility

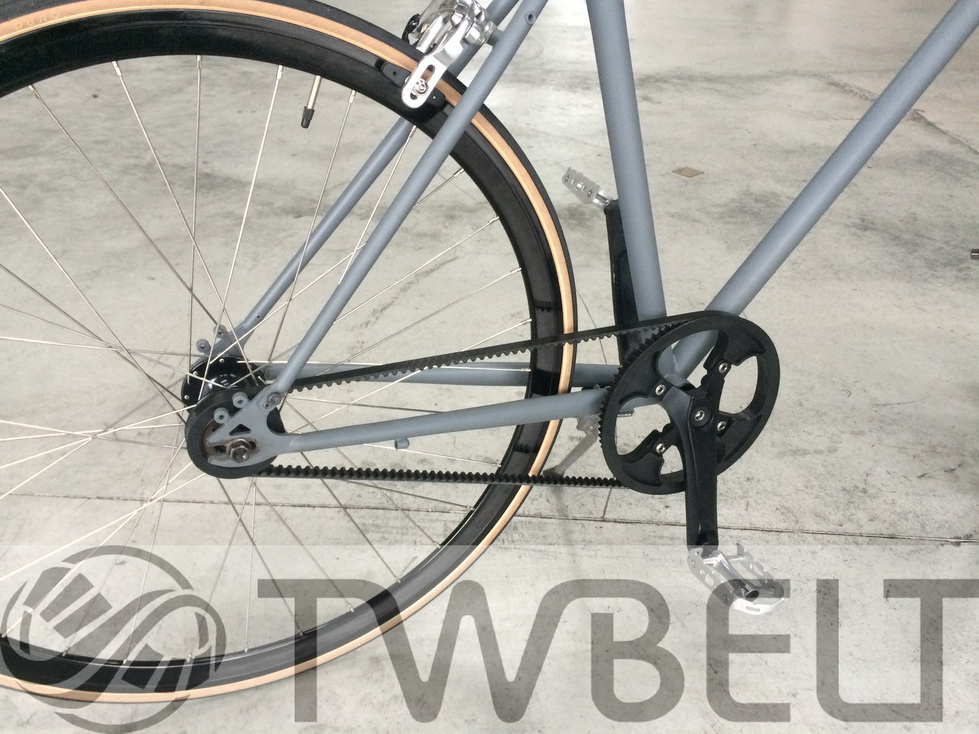

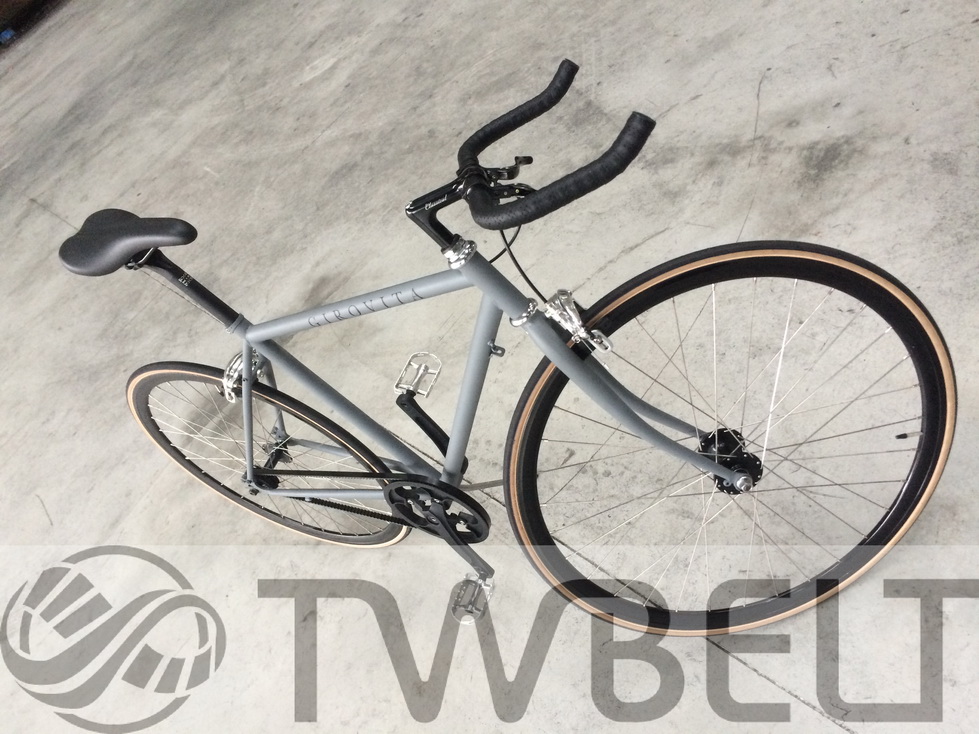

                Regardless of road bike, MTB, folding bicycle, etc., all are suitable for belt drive systems.

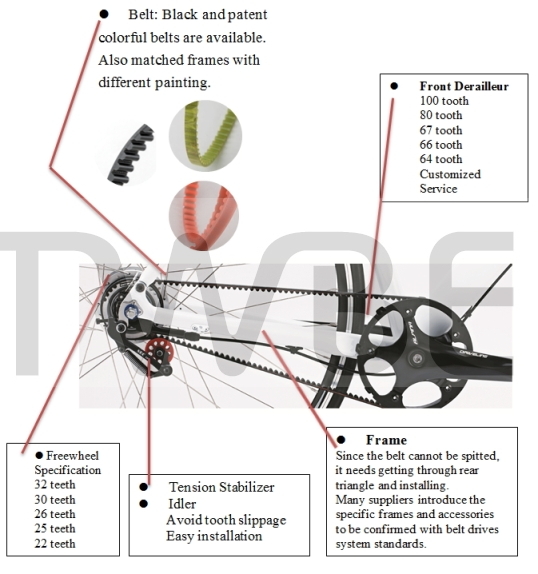

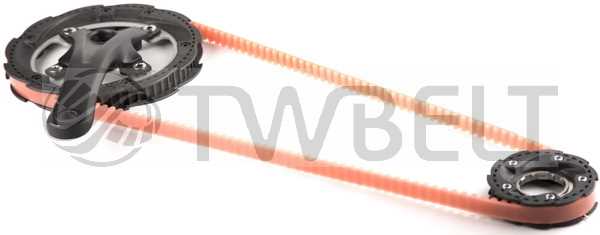

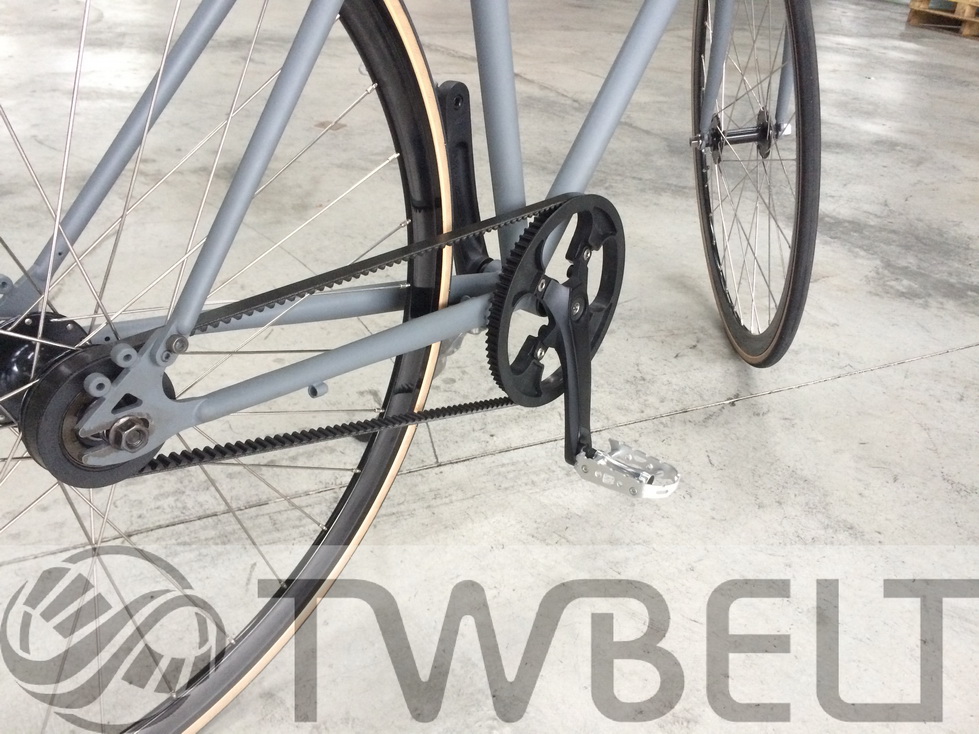

              Black and patent colorful belts are available. Also matched frames with different painting.Since the belt cannot be spitted, it needs getting through rear triangle and installing. Many suppliers introduce the specific frames and accessories to be confirmed with belt drives system standards.Stabilizer or Idler



              Structure：

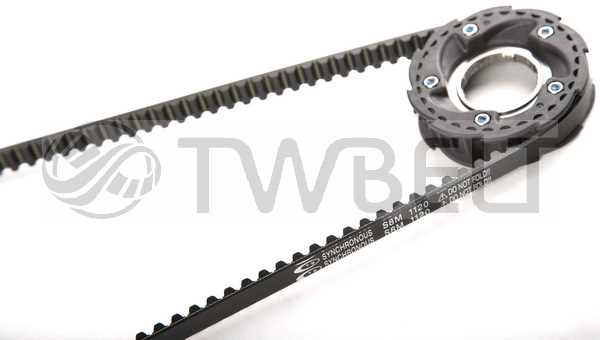

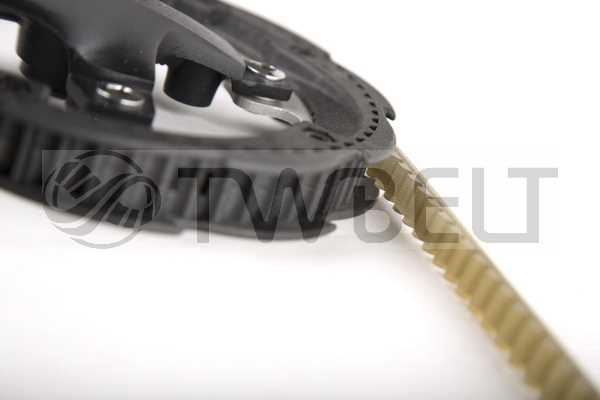

              Lightweight Enhanced flexibility,(flexuosity, bend), improved efficiency Round tooth profiles and low backlash, smooth ride.Material: Excellent Polyurethane Tough and flexible, increasing belt strength and wear resistance Conditionally resistant to corrosion Resistant to UV and climate Cord wires: Powerful steel cords, enabling belt high strength Constant tension wherever in any condition

















            • Should you wish to place an order, please contact us!

              SPEC. Length Tooth PU 　 SPEC. Length Tooth PU
              8M-1000 1000.00 125 　 　 8M-1600 1600.00 200 　
              8M-1008 1008.00 126 　 　 8M-1624 1624.00 203 　
              8M-1032 1032.00 129 　 　 8M-1640 1640.00 205 　
              8M-1040 1040.00 130 　 　 8M-1648 1684.00 206 　
              8M-1048 1048.00 131 　 　 8M-1680 1680.00 210 　
              8M-1056 1056.00 132 　 　 8M-1688 1688.00 211 ✔
              8M-1064 1064.00 133 ✔ 　 　 　 　 　
              8M-1072 1072.00 134 　 　 　 　 　 　
              8M-1080 1080.00 135 　 　 　 　 　 　
              8M-1096 1096.00 137 　 　 　 　 　 　
              8M-1104 1104.00 138 　 　 　 　 　 　
              8M-1112 1112.00 139 　 　 　 　 　 　
              8M-1120 1120.00 140 ✔ 　 　 　 　 　
              8M-1128 1128.00 141 　 　 　 　 　 　
              8M-1136 1136.00 142 　 　 　 　 　 　
              8M-1152 1152.00 144 ✔ 　 　 　 　 　
              8M-1160 1160.00 145 ✔ 　 　 　 　 　
              8M-1168 1168.00 146 　 　 　 　 　 　
              8M-1176 1176.00 147 　 　 　 　 　 　
              8M-1184 1184.00 148 　 　 　 　 　 　
              8M-1192 1192.00 149 　 　 　 　 　 　
              8M-1200 1200.00 150 ✔ 　 　 　 　 　
              8M-1208 1208.00 151 　 　 　 　 　 　
              8M-1216 1216.00 152 　 　 　 　 　 　
              8M-1224 1224.00 153 　 　 　 　 　 　
              8M-1232 1232.00 154 　 　 　 　 　 　
              8M-1240 1240.00 155 　 　 　 　 　 　
              8M-1248 1248.00 156 ✔ 　 　 　 　 　
              8M-1256 1256.00 157 　 　 　 　 　 　
              8M-1264 1264.00 158 　 　 　 　 　 　
              8M-1272 1272.00 159 　 　 　 　 　 　
              8M-1280 1280.00 160 ✔ 　 　 　 　 　
              8M-1296 1296.00 162 　 　 　 　 　 　
              8M-1304 1304.00 163 　 　 　 　 　 　
              8M-1312 1312.00 164 　 　 　 　 　 　
              8M-1320 1320.00 165 　 　 　 　 　 　
              8M-1328 1328.00 166 　 　 　 　 　 　
              8M-1344 1344.00 168 ✔ 　 　 　 　 　
              8M-1360 1360.00 170 　 　 　 　 　 　
              8M-1392 1392.00 174 　 　 　 　 　 　
              8M-1400 1400.00 175 ✔ 　 　 　 　 　
              8M-1408 1408.00 176 　 　 　 　 　 　
              8M-1416 1416.00 177 　 　 　 　 　 　
              8M-1424 1424.00 178 　 　 　 　 　 　
              8M-1432 1432.00 179 　 　 　 　 　 　
              8M-1440 1440.00 180 ✔ 　 　 　 　 　
              8M-1456 1456.00 182 　 　 　 　 　 　
              8M-1464 1464.00 183 　 　 　 　 　 　
              8M-1480 1480.00 185 　 　 　 　 　 　
              8M-1512 1512.00 189 　 　 　 　 　 　
              8M-1520 1520.00 190 　 　 　 　 　 　
              8M-1552 1552.00 194 　 　 　 　 　 　
              8M-1560 1560.00 195 　 　 　 　 　 　
              8M-1576 1576.00 197 　 　 　 　 　 　
              8M-1584 1584.00 198 　 　 　 　 　 　

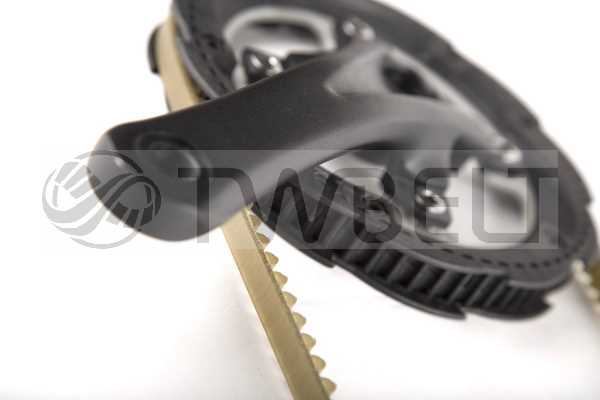

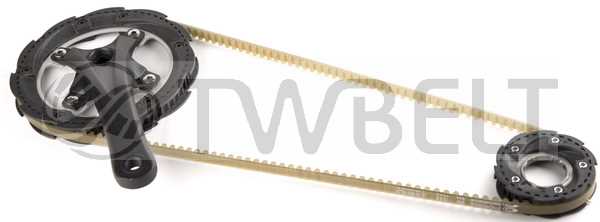

            • Belt, chainwheel, freewheel, sprocket, and belt stabilizer are available and compatible with wide range of bikes.

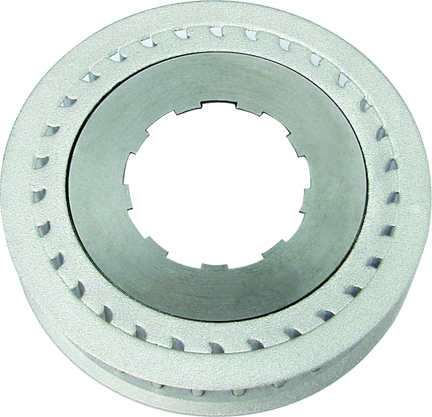

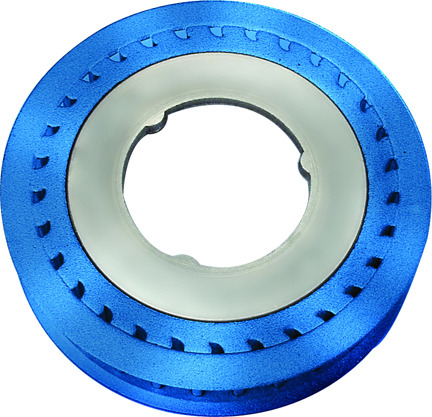

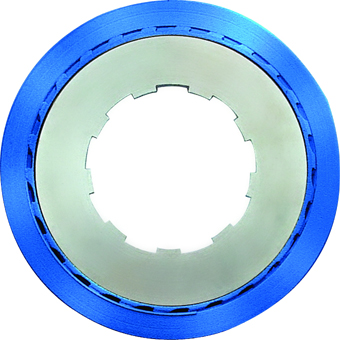

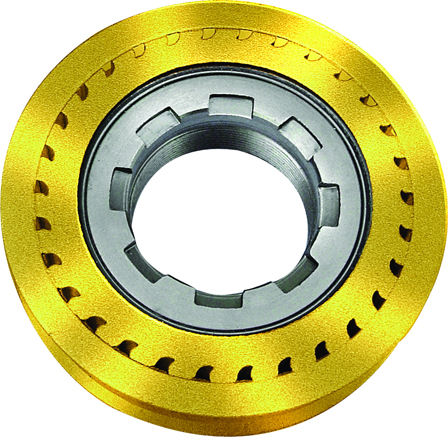

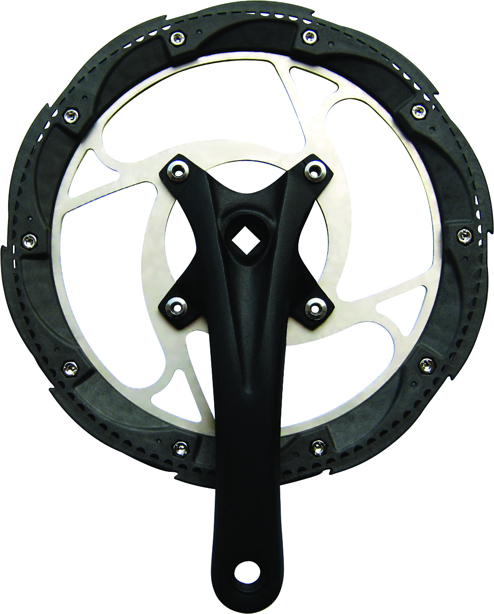

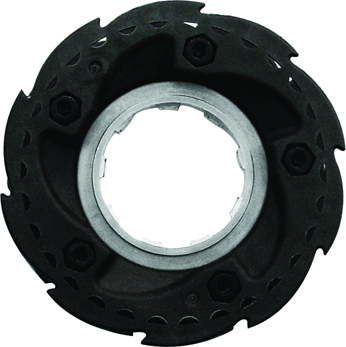

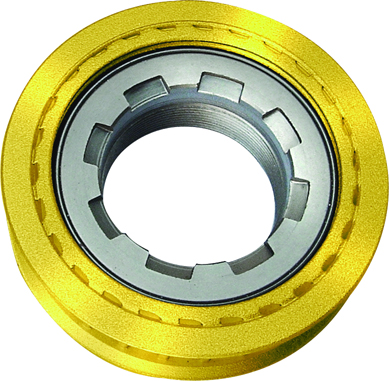

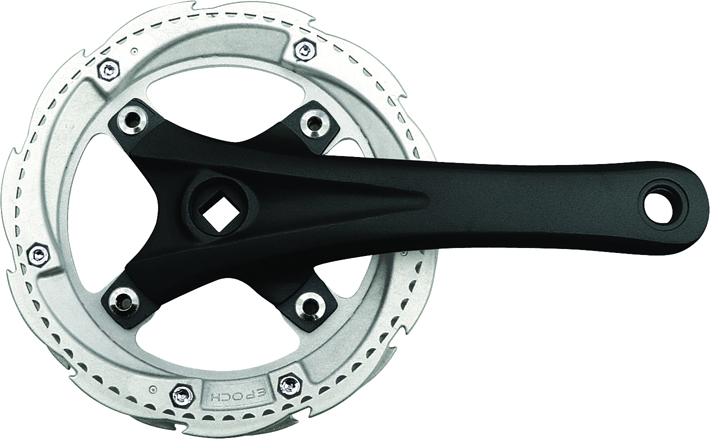

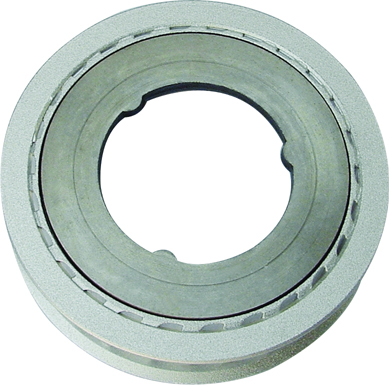

              　 Chainwheel Freewheel
              SPEC. 100 teeth 32 teeth
              80 teeth 30 teeth
              67 teeth 26 teeth
              66 teeth 25 teeth

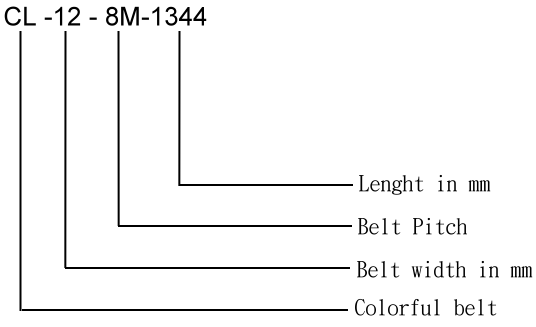

            • CL-12-8M-1344
